Core Ebikes

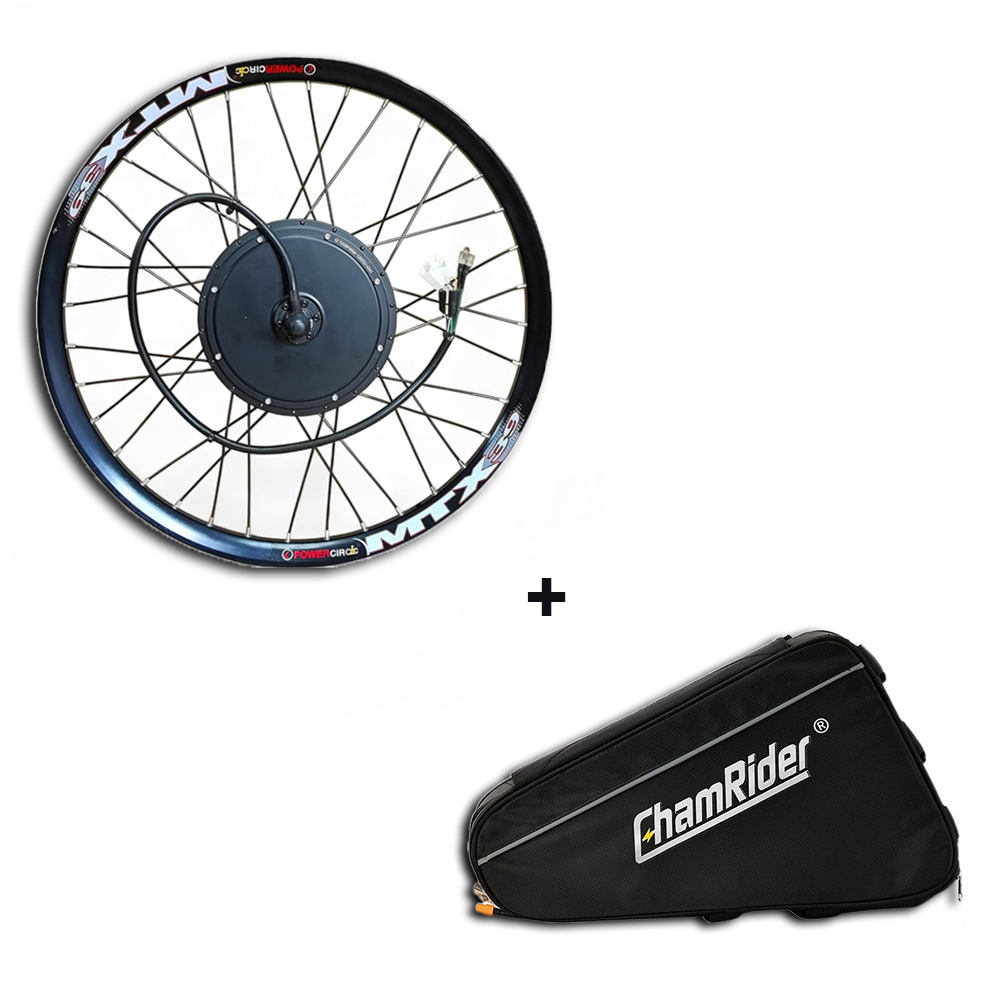

BUNDLE 72V 5000W Kit + 30Ah Battery
This ready to go kit includes everything you need to begin your electrifying journey with us!
It consists of the powerful 72V kit that has a rated power of 5000W (7200W Peak) linked by a Sinewave 72V 80A Controller. It provides a max torque of 135N/m and a top speed of ~60MPH. The rear-wheel hub motor is laced with a robust MTX rim available in all sizes. To power this, we are including a large 72V 30aH Battery, consisting of top quality Samsung cells, including a 4A Charger. This kit has all you need to get going!
This kit is not for beginners. It has very high torque and speed so please only purchase if you have some experience with faster E-Bikes.
Motor Kit:
- Condition: Brand-new
- Material: Aluminium Alloy
- Rim: Double Wall Alloy
- Power: 5000W (Peak 7200W at 100A)
- Bike Type: Electric Bicycle Conversion Kit
- Wheel type: Rear Wheel
- Motor Type: Brushless Gearless Hub Motor
- Features: Throttle, Pedal Assist, 5000 Watt, Regenerative Braking, 48V - 72V, 5 Speed Modes, Anti-Theft Alarm, IP54 Waterproof,
- Torque: 150 Nm
- Spokes: Steel, 12G
- Max speed: 55 to 60 mph
- Range: 50 to 60 miles (5 Speed Modes)
- Wheel Size: 26” | 27.5” | 29”
- Wheel Axle: 175 x Φ16mm Fits most MTB Frames.
- Max load capacity: 840 LBS
- Net weight: 20KG
- Net Weight: 44 LBS
Battery:
- Voltage: 72V
- Continuous Current: 80A
- Peak Current: 100A
- Max Power: 7200W
- Capacity: 30Ah
- BMS (Battery Management System): Built in
- Range: 50-60 Miles
- Cells: 21700 Samsung 50S
- Cell Configuration: 20s6p
- Structure: Hard-Cased
- Bag Included
- Charger: 5A Fast Charger (UK Plug)
- Discharge Connector: Double O-Ring
- Safety Features: overcharge protection, short-circuit protection, temperature control, over-discharge protection, cell balancing (BMS), thermal cut-off, overcurrent protection, overvoltage protection, BMS monitoring, fault detection and shutdown, fire retardant casings, fusing, IP54 Waterproof, impact/vibration protection

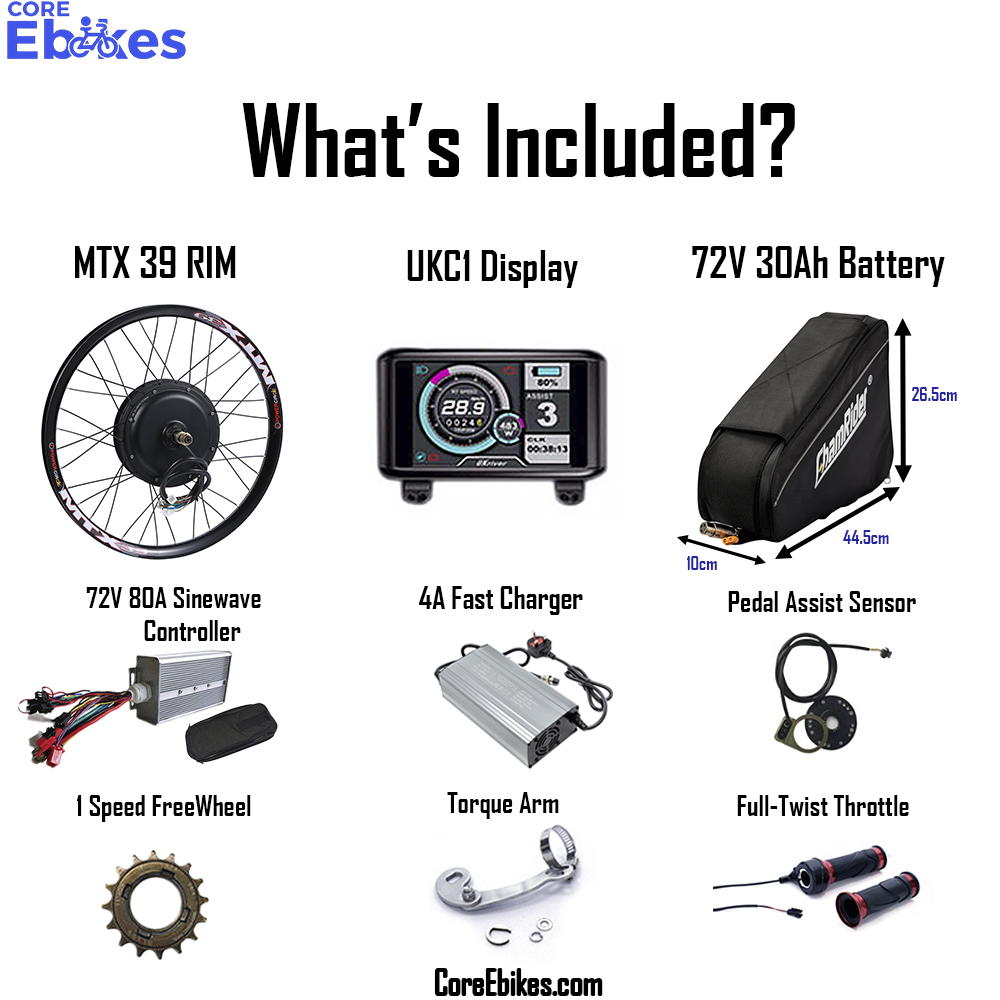

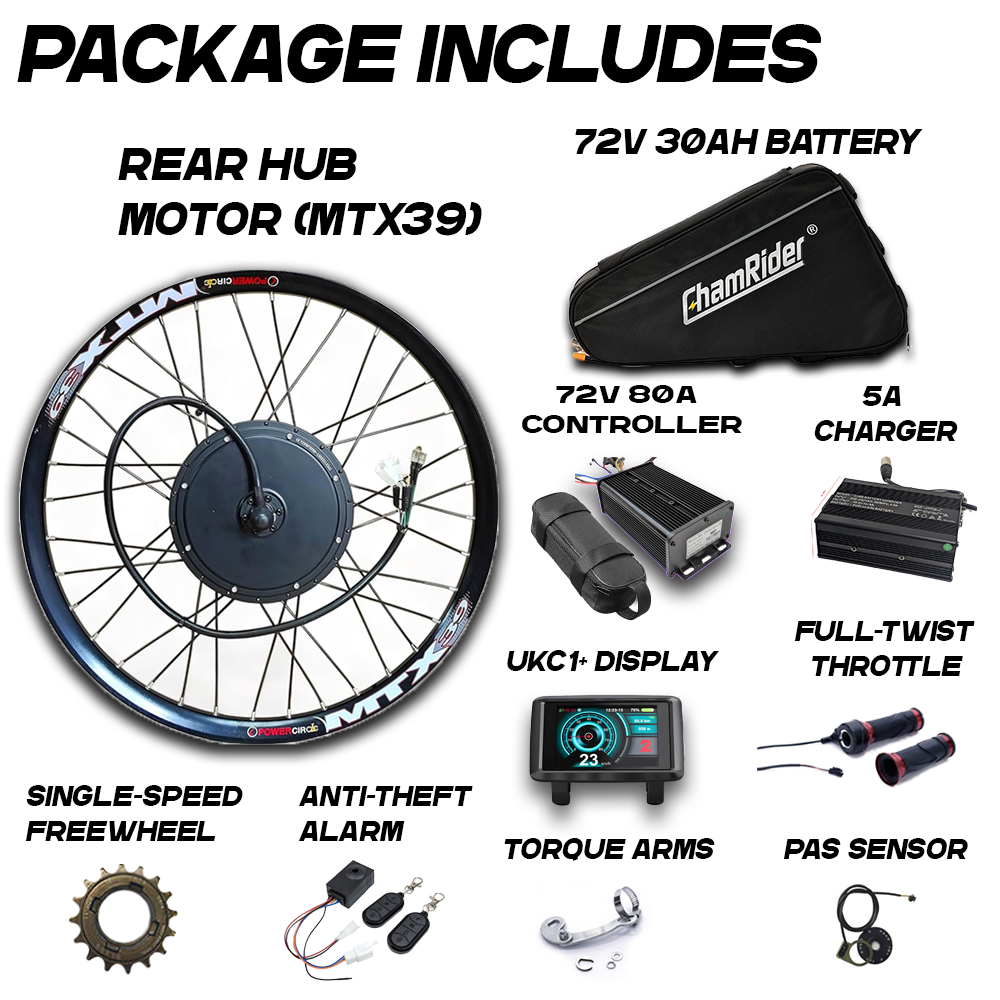

Package Includes:
- MTX39 Motor (1.8”-2.8” Tyre Width)

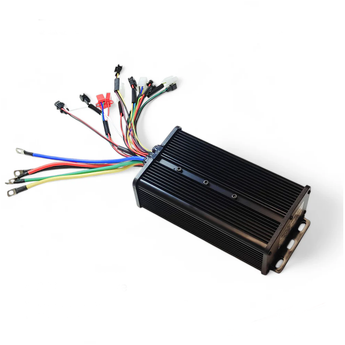

- 72V 80A (100A Peak) Sinewave Controller - Peak 7200W
- 72V 30Ah Triangle Battery
- 5A Charger
- Upgraded UKC1 Colourful Display
- Full-Twist Throttle
- Pedal Assist Sensor (PAS)
- Alarm with keys.
- 1 Speed FreeWheel
- Controller Bag
- Torque Arm
Fitment: Fits XL Carreras, Voodoos, Boardmans, Konas, Cubes, Diamondback, Stealth Bombers and many more! Ensure your dropouts are quick release/ bolt on otherwise the motor cannot be mounted.
Shipping & Returns
Please allow up to 5 working days for dispatch. Tracking provided prior dispatch. In the rare circumstance that your product is faulty on arrival, we have a 14-day Return Policy. Item must be returned in its original condition. Please double-check your basket to make sure you are ordering your required size as we cannot accept returns for this case.
Please check our full policies, located at the bottom of each page.
Bike Frame Requirements
Your frame must:
- Have Quick Release / Bolt on dropouts so that the motor can be slotted in during installation. Any frame that uses a thru axle will not be compatible.

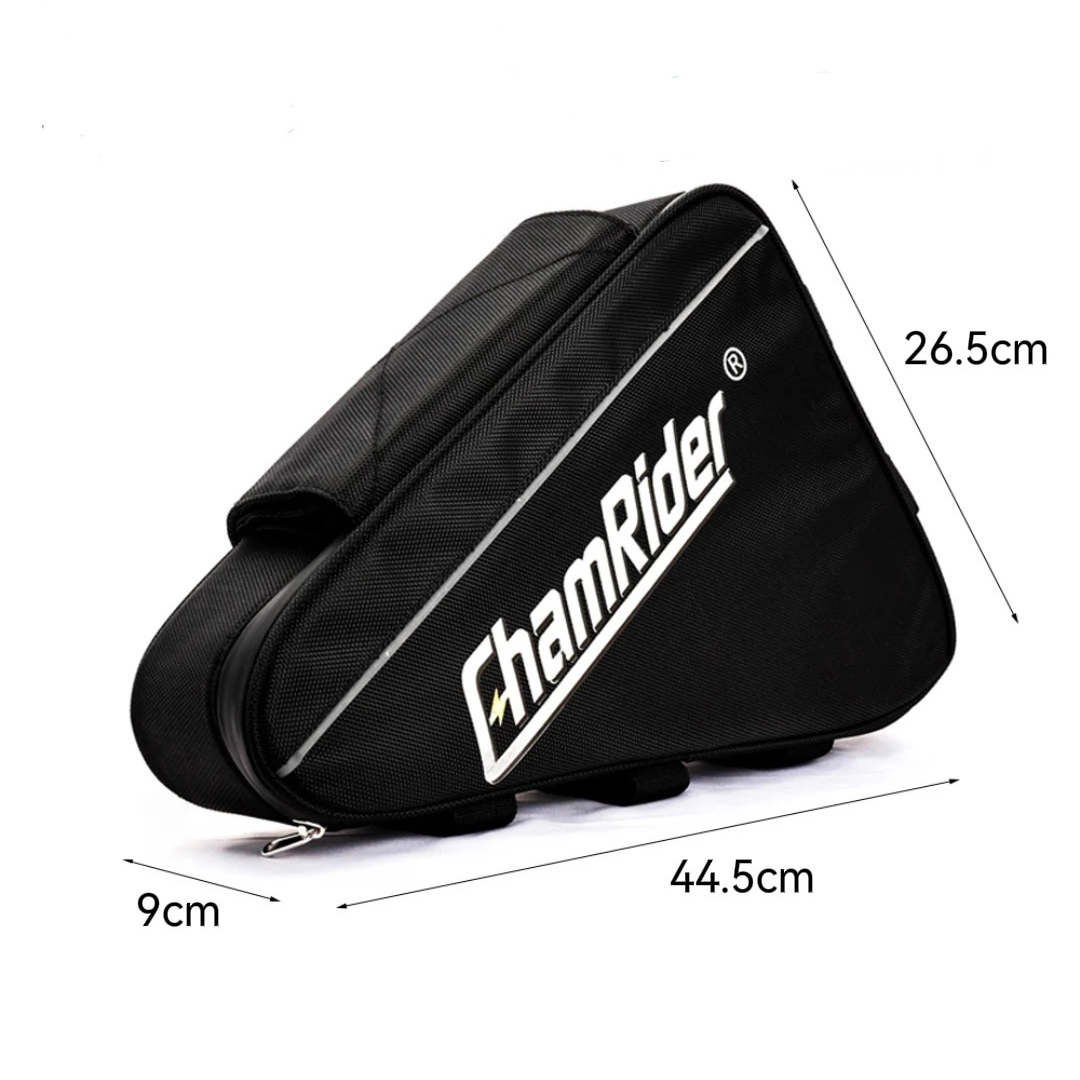

- Be a Large/XL Sized frame. Our batteries have a large capacity, meaning a larger physics size. Please check the dimensions of the battery that are displayed on each listing photo, to confirm that it will fit on your current frame.
- Not have rear suspension. Front suspension is fine but not rear! The rear shock will take up too much space in the frame for the battery.
- Be Disc-Brake compatible. All of our motor kits are supplied with standard, universal 6-bolt disc mounts. If your current frame uses a V-Brake (uses rim friction to stop), your frame is not suitable.
- If you are still unsure, please send us a photo of your bike along with the: Name, Model, Frame Size, Wheel Size at: Core.Ebikes@gmail.com
Compatibility
All MTB Kits: 135mm (Compatible with most bike frames)
FatBike Kits: 175mm/190mm (your choice)
