72V 3000W E-Bike Conversion Kit

£525.00
Tax included. Shipping calculated at checkout.
Wheel Size (Inches "): 20"

Our powerful 72V kit has a rated power of 4000W with a peak of 4320W linked by a Sinewave 72V 60A Controller. It provides a max torque of 95N/m and a top speed of 55MPH. The rear-wheel hub motor is laced with a robust MTX rim available in all sizes. This kit also includes the SW900 display offering multiple functions such as power levels and cruise controller.

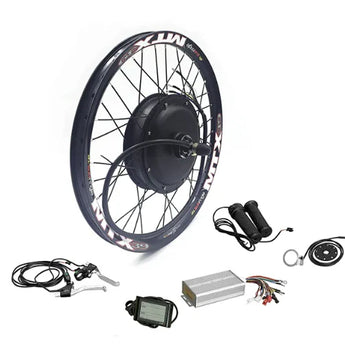

Package Contents:

  • MTX39 Motor (1.8”-2.8” Tyre Width)
  • 72V 60A Sinewave Controller - Peak 4320W
  • SW900 Display
  • Full-Twist Throttle
  • Pedal Assist Sensor (PAS)

Fitment: Fits L/XL Carreras, Voodoos, Boardmans, Konas, Cubes, Diamondback and many more! Ensure your dropouts are quick release/ bolt on otherwise the motor cannot be mounted.

Warranty: 24 month warranty for the motor and 6 months for remaining parts.

Shipping & Returns

Please allow up to 5 working days for dispatch. Tracking provided prior dispatch. In the rare circumstance that your product is faulty on arrival, we have a 14-day Return Policy. Item must be returned in its original condition. Please double-check your basket to make sure you are ordering your required size as we cannot accept returns for this case.
Please check our full policies, located at the bottom of each page.

Bike Frame Requirements

Your frame must:

  • Have Quick Release / Bolt on dropouts so that the motor can be slotted in during installation. Any frame that uses a thru axle will not be compatible.
  • Be a Large/XL Sized frame. Our batteries have a large capacity, meaning a larger physics size. Please check the dimensions of the battery that are displayed on each listing photo, to confirm that it will fit on your current frame.
  • Not have rear suspension. Front suspension is fine but not rear! The rear shock will take up too much space in the frame for the battery.
  • Be Disc-Brake compatible. All of our motor kits are supplied with standard, universal 6-bolt disc mounts. If your current frame uses a V-Brake (uses rim friction to stop), your frame is not suitable.
  • If you are still unsure, please send us a photo of your bike along with the: Name, Model, Frame Size, Wheel Size at: Core.Ebikes@gmail.com
Compatibility

All MTB Kits: 135mm (Compatible with most bike frames)

FatBike Kits: 175mm/190mm (your choice)
Wheel Size (Inches "): 20"
