Core Ebikes

48V 1500w E-bike Conversion Kit

£340.00
Tax included. Shipping calculated at checkout.
Wheel Size (Inches "): 26"

Our 48V kit has a rated power of 1000W with a peak of 1440W linked by a Sinewave 48V/52V 40A Controller. It provides a max torque of 60N/m and a top speed of 35MPH. The rear-wheel hub motor is laced with a robust rim available in all sizes. This kit also Includes the Colourful SW900 display offering multiple functions such as power level control.

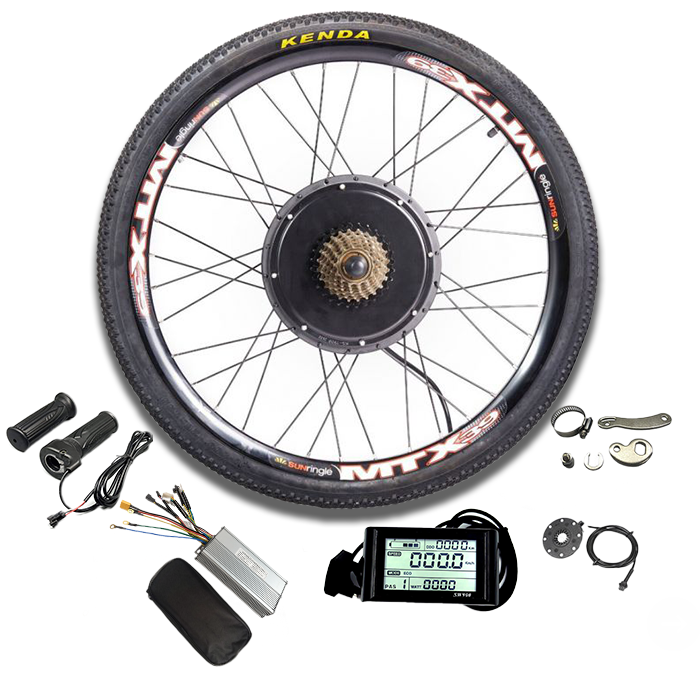

Package Contents:

  • 1000W Hub Motor

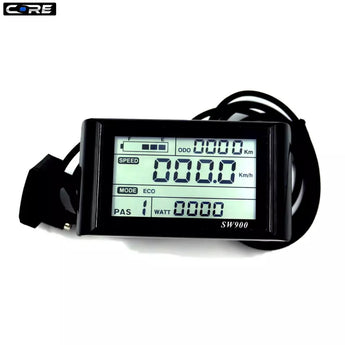

  • Colourful SW900 Display
  • 48V 35A Controller
  • Full Twist Throttle
  • Pedal Assist Sensor (PAS)
  • Controller Bag
  • Torque Arm
  • Brake Levers With Sensor

Fitment: Fits L/XL Carreras, Voodoos, Boardmans, Konas, Cubes, Diamondback and many more! Ensure your dropouts are quick release/ bolt on otherwise the motor cannot be mounted.

Warranty:  24 month warranty for the motor and 6 months for remaining parts.

Shipping & Returns

Please allow up to 5 working days for dispatch. Tracking provided prior dispatch. In the rare circumstance that your product is faulty on arrival, we have a 14-day Return Policy. Item must be returned in its original condition. Please double-check your basket to make sure you are ordering your required size as we cannot accept returns for this case.
Please check our full policies, located at the bottom of each page.

Bike Frame Requirements

Your frame must:

  • Have Quick Release / Bolt on dropouts so that the motor can be slotted in during installation. Any frame that uses a thru axle will not be compatible.
  • Be a Large/XL Sized frame. Our batteries have a large capacity, meaning a larger physics size. Please check the dimensions of the battery that are displayed on each listing photo, to confirm that it will fit on your current frame.
  • Not have rear suspension. Front suspension is fine but not rear! The rear shock will take up too much space in the frame for the battery.
  • Be Disc-Brake compatible. All of our motor kits are supplied with standard, universal 6-bolt disc mounts. If your current frame uses a V-Brake (uses rim friction to stop), your frame is not suitable.
  • If you are still unsure, please send us a photo of your bike along with the: Name, Model, Frame Size, Wheel Size at: Core.Ebikes@gmail.com
Compatibility

All MTB Kits: 135mm (Compatible with most bike frames)

FatBike Kits: 175mm/190mm (your choice)
Wheel Size (Inches "): 26"
