Core Ebikes

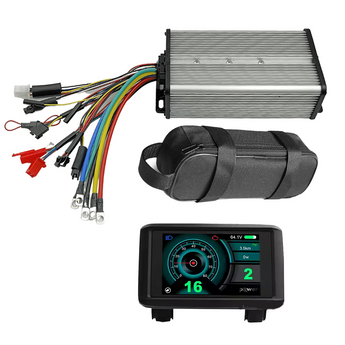

72V 80A Sinewave Controller
72V 80A Sinewave Controller. Ideal for those who are looking to upgrade/replace their current controller! If you require a specific battery discharge connector, let us know after placing order as this can be arranged with no delay.
- Max Voltage: 72V
- Max Continuous Current: 80A
- Max Power: Up to 7200W
- Type: Sinewave 18 Mosfet
- Battery Plug: Red/Black O-Ring (If need different, let us know)
- Regenerative Braking
- Alloy Structure
- Dual Hall Connector
Package Includes:
- 1pcs 72V 80A Controller
- Optional 1pcs UKC1+ Display
Shipping & Returns
Please allow up to 5 working days for dispatch. Tracking provided prior dispatch. In the rare circumstance that your product is faulty on arrival, we have a 14-day Return Policy. Item must be returned in its original condition. Please double-check your basket to make sure you are ordering your required size as we cannot accept returns for this case.
Please check our full policies, located at the bottom of each page.
Bike Frame Requirements
Your frame must:
- Have Quick Release / Bolt on dropouts so that the motor can be slotted in during installation. Any frame that uses a thru axle will not be compatible.
- Be a Large/XL Sized frame. Our batteries have a large capacity, meaning a larger physics size. Please check the dimensions of the battery that are displayed on each listing photo, to confirm that it will fit on your current frame.
- Not have rear suspension. Front suspension is fine but not rear! The rear shock will take up too much space in the frame for the battery.
- Be Disc-Brake compatible. All of our motor kits are supplied with standard, universal 6-bolt disc mounts. If your current frame uses a V-Brake (uses rim friction to stop), your frame is not suitable.
- If you are still unsure, please send us a photo of your bike along with the: Name, Model, Frame Size, Wheel Size at: Core.Ebikes@gmail.com
Compatibility
All MTB Kits: 135mm (Compatible with most bike frames)
FatBike Kits: 175mm/190mm (your choice)
